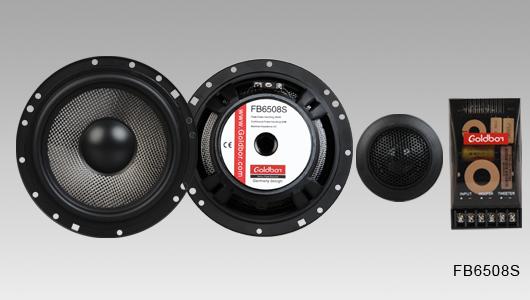

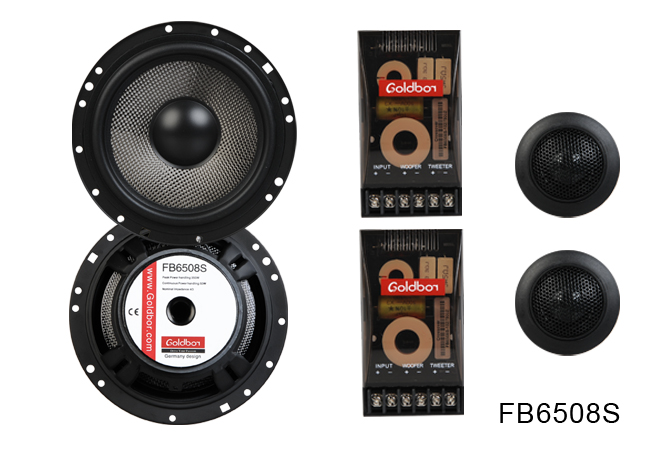

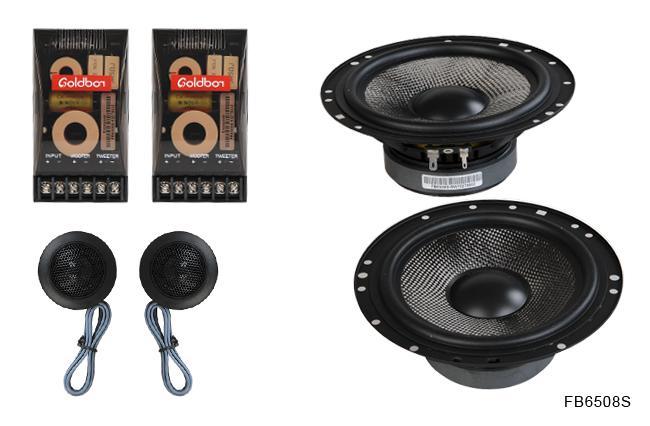

FB6508S
6½" Component Speaker Package
350 Watts Max Power (50 Watts Nominal)

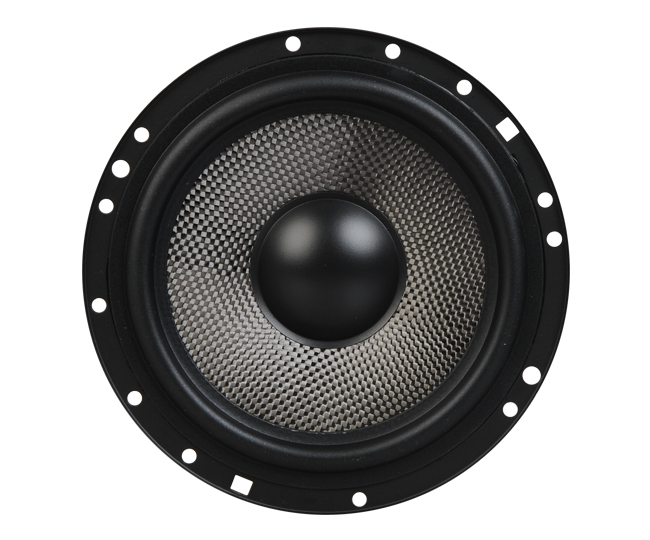

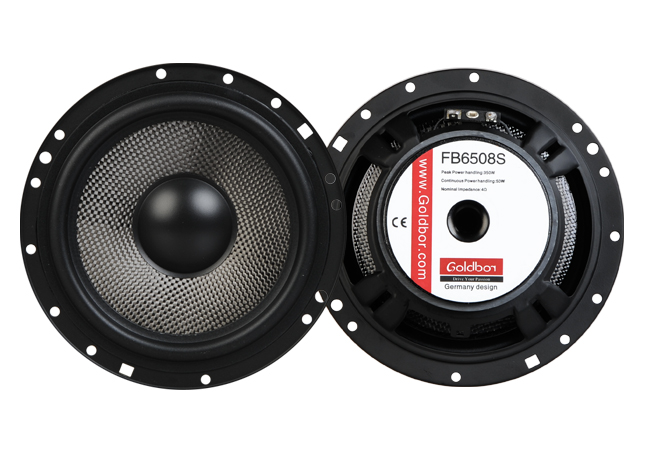

6½" (165mm) mid/woofer

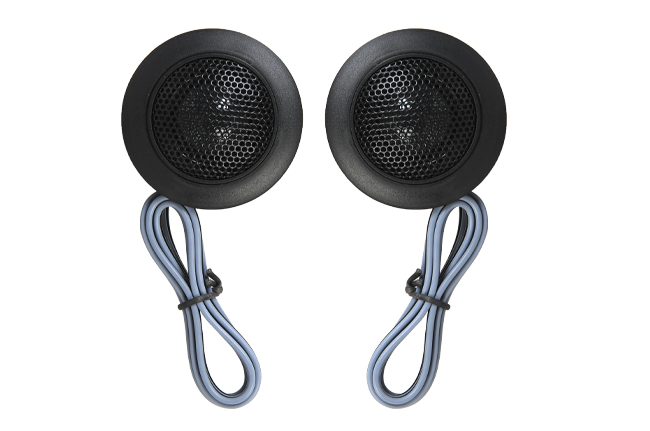

1" (25mm) Silk Dome Tweeter
Revolutionary Basalt Fiber Weave IMX Speaker Cones Provide Strength
and Durability for Amazing Sound

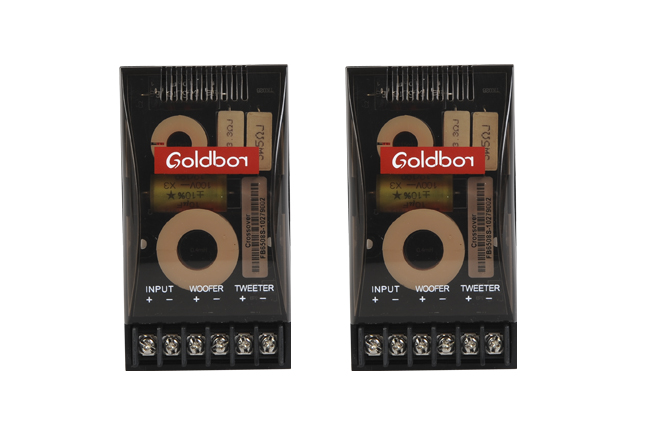

High-Quality Crossover Network
Price: $359.00
Type |
6.5" component system |
Driver complement |
6.5" (165mm) mid/woofer |
Tweeter complement |
1" (25mm) Silk Dome Tweeter |
Peak Power handling |
350W |
Continuous Power handling |
50W |
Nominal Impedance |
4Ω |
Frequency response |
30Hz-25kHz |
Sensitivity |
93dB |
Installation dimensions(in mm) |
Woofer |
Max Diameter . |
Φ166 |
Mounting hole min. |
Φ138 |
Mounting Depth min. |
Φ59 |
Tweeter |
Max Diameter . |
Φ58 (include outer covering) |
Mounting hole min. |
Φ48 (include outer covering) |
Mounting Depth min. |
17 (include outer covering) |
Mounting hole |
Φ42 (only tweeter) |
Mounting Depth |
23 (only tweeter) |
Crossover |
Dimensions |
120(L)x65(W)x32(H) |
